Data sheet

Washer, DIN 125 A, M 6 (6,4x12mm), Stainless steel A2
{{ $t('shop.all.artikelnummer') }}:
125A-6 ES

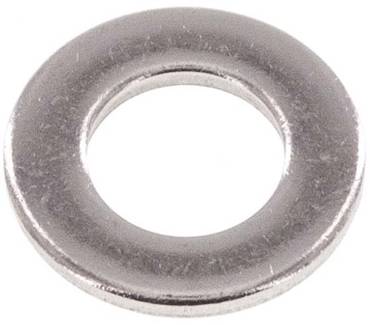

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Optional:
Stainless steel A4 -ES4A
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Stainless steel A2
for screws M 6
Inner diameter D [mm] 6,4
Outer diameter D1 [mm] 12
Strength S [mm] 1,6
Further information:
{{ $t('shop.all.gewicht') }} 0,8 g / pcs
{{ $t('shop.all.gtin') }} 4050571000738
{{ $t('shop.display.artikel.zollwarennummer') }} 73181900
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Unchamfered washer DIN 125 A / ISO 7089
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 125A-6 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
