Data sheet
Spring washer DIN 127 A (bent up), for M 33, Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
127A-33

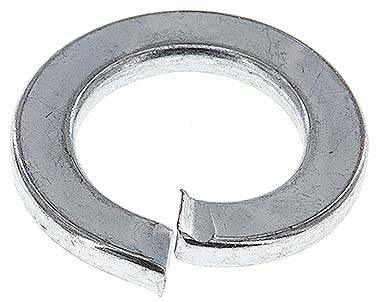

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| for screws | M 33 |
| Inner diameter D [mm] | 33,5 |
| Outer diameter D2 (max.) [mm] | 55,2 |
| Width B [mm] | 10,0 |
| Strength S [mm] | 6 |
| Design | DIN 127 A (bent up) |
Further information:
| {{ $t('shop.all.gewicht') }} | 60 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571135225 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181900 |
Figure
Drawing:
Drawing: Spring washer DIN 127 A (galvanised steel)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 127A-33.
