Data sheet
Spring washer DIN 127 A (bent up), for M 6, Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
127A-6

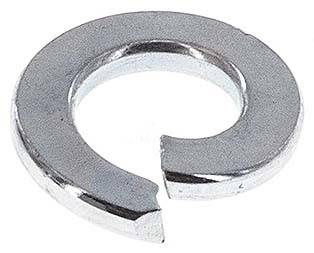

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| for screws | M 6 |
| Inner diameter D [mm] | 6,1 |
| Outer diameter D2 (max.) [mm] | 11,8 |
| Width B [mm] | 2,5 |
| Strength S [mm] | 1,6 |
| Design | DIN 127 A (bent up) |
Further information:
| {{ $t('shop.all.gewicht') }} | 0,8 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571135102 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181900 |
Figure
Drawing:
Drawing: Spring washer DIN 127 A (galvanised steel)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 127A-6.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
