Data sheet
Lens tapping screw DIN7981C, 3,5x13 Steel hardened & galvanised
Item number:
7981C-3,5X13

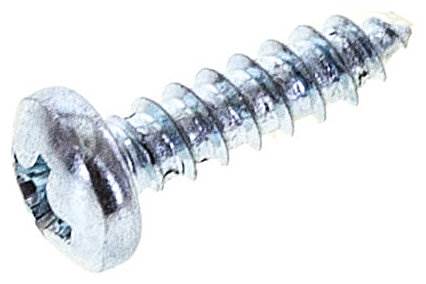

Example illustration
Properties
| Material | Steel hardened & galvanised |
| D [mm] | 3,5 |
| L [mm] | 13 |
| Dk [mm] | 6,9 |
| K (max) [mm] | 2,60 |
| Cross recess | PH2 |
Further information:
| Weight | 1 g / pcs |
| GTIN | 4050571065300 |
| Tariff No. | 73181900 |
Drawing:
Drawing: Phillips pan-head tapping screw DIN 7981 C / ISO 7049
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 7981C-3,5X13.
