Data sheet
Dummy flange DN25-PN16 (DIN),DIN 2527, 1.4571
{{ $t('shop.all.artikelnummer') }}:
FL 25 B ES

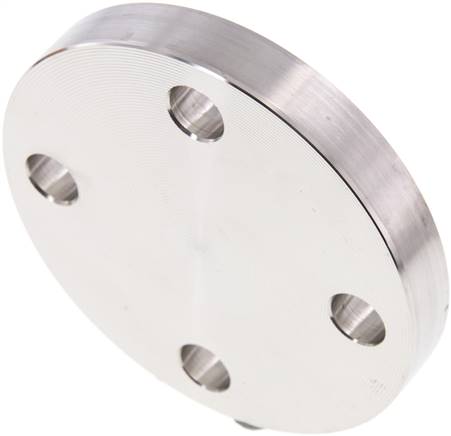

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Optional:
PN 10 -10, PN 25 -25, PN 40 -40, PN 63/64 -63, PN 100 -100, PN 160 -160, EN 1092 (type 05) -EN
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4571 |
| Flange connection | DN25-PN16 (DIN) |
| DN [mm] | 25 |
| PN [bar] | 16 |
| Standard | DIN 2527 |
| Number of holes | 4 |
| A [mm] | 115 |
| b [mm] | 16 |
| k [mm] | 85 |
| d [mm] | 14 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,2 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571300579 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73072100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Blind flanges DIN 2527
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number FL 25 B ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
