Data sheet
Cotter pin DIN 94 / ISO 1234, 2,5x20 mm, Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
94-2,5X20

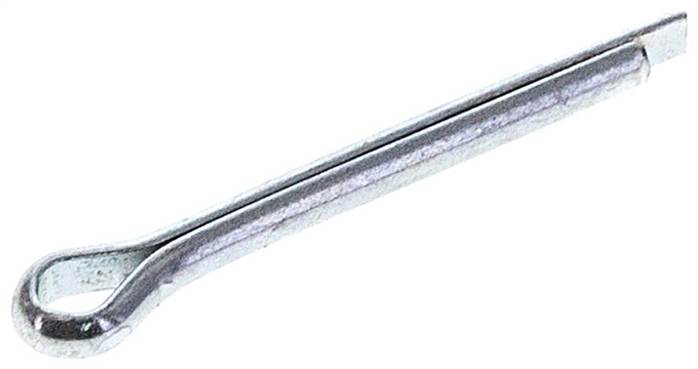

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Nominal diameter D [mm] | 2,5 |
| L [mm] | 20 |
| A (max) [mm] | 2,5 |
| B [mm] | 5,0 |
| C (max) [mm] | 4,6 |
Further information:
| {{ $t('shop.all.gewicht') }} | 0,8 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571132187 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181900 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Zeichnung: Splint DIN 94 / ISO 1234
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 94-2,5X20.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
