Data sheet
Flat-head screw DIN965 / ISO7046, M 4x40, Galvanised steel 4.8
{{ $t('shop.all.artikelnummer') }}:
965-M4X40

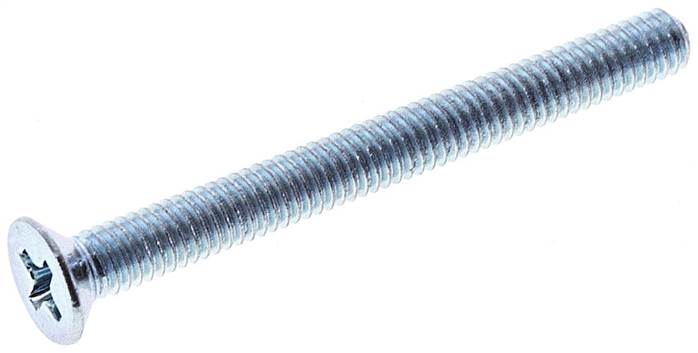

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Galvanised steel 4.8 |
| D | M 4 |
| L [mm] | 40 |
| Dk [mm] | 7,5 |
| K [mm] | 2,20 |
| Cross recess | PH2 |
Further information:
| {{ $t('shop.all.gewicht') }} | 3,2 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571140991 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181900 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Countersunk screw with cross recess DIN 965 / ISO 7046
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 965-M4X40.
