Data sheet
Flat-head screw DIN965 / ISO7046, M 5x10, Stainless steel A2
{{ $t('shop.all.artikelnummer') }}:
965-M5X10 ES

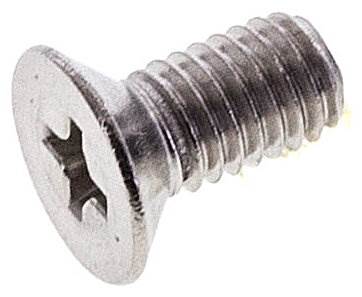

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Stainless steel A2 |
| D | M 5 |
| L [mm] | 10 |
| Dk [mm] | 9,2 |
| K [mm] | 2,50 |
| Cross recess | PH2 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,6 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571141233 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181900 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Zeichnung: Senkschraube mit Kreuzschlitz DIN 965 / ISO 7046
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 965-M5X10 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
