Data sheet
Hexagonal nut, self-locking. DIN 985, M 10, Stainless steel A2
{{ $t('shop.all.artikelnummer') }}:
985-M10 ES

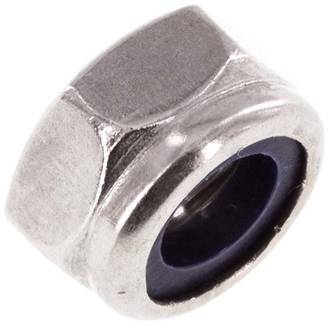

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Optional:
Stainless steel A4 -ES4A
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Stainless steel A2 |
| D | M 10 |
| H [mm] | 10 |
| M (min.) [mm] | 6,5 |
| Mi (min.) [mm] | 5,50 |
| S [mm] | 17 |
Further information:
| {{ $t('shop.all.gewicht') }} | 9,8 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571141943 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181660 |
Figure
Drawing:
Drawing: Self-locking nut DIN 985 / ISO 10511
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 985-M10 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
