Data sheet
Pipe bows type 3, 48,3x3,2mm, 1.4571, welded, EN 10253 Typ A (DIN 2605)
{{ $t('shop.all.artikelnummer') }}:
W48,332GA6

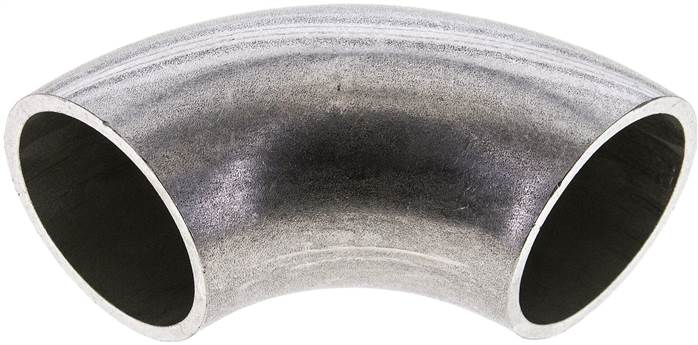

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4571* |
| Connection D [mm] | 48,3 |
| Wall thickness S [mm] | 3,2 |
| Version | welded |
| R [mm] | 57,0 |
| Standard | EN 10253 Typ A (DIN 2605) |
Further information:
| {{ $t('shop.all.gewicht') }} | 300 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571734916 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73072310 |
Figure
Drawing:
Drawing: Pipe bend 90°
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number W48,332GA6.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
