ISO 21287 cylinders, double acting, piston 25 mm, stroke 5 mm
{{ $t('shop.all.artikelnummer') }}:
NAD 25/5

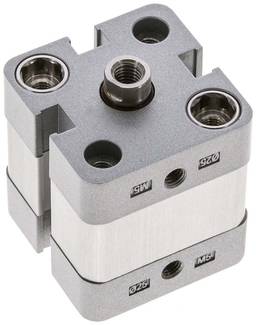

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Head and foot: Aluminium, cylinder tube: Anodized aluminium, piston rod: stainless steel, seal: NBR/PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Piston diameter [mm] | 25 |
| Stroke [mm] | 5 |
| Version | Standard |
| KF (piston rod female thread) | M 6 |
| G (compressed air port) | M 5 |
| Repair sets | NAD 25 REP |
| A [mm] | 10 |
| AF [mm] | 10 |
| B [mm] | 9 |
| BG [mm] | 19,5 |
| CH [mm] | 9 |
| E [mm] | 40,0 |
| LA [mm] | 4,5 |
| RT | M 5 |
| TG [mm] | 26,0 |
| WH [mm] | 6 |
| ZA [mm] | 39 |
| ZB [mm] | 45 |
| ZC [mm] | 24 |
Further information:
| {{ $t('shop.all.gewicht') }} | 170 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571517410 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
Figure
Drawing:
Drawing: Compact cylinder ISO 21287, Standard
