Data sheet
Welding technology pressure gauge 63mm, 0 to 315 bar, neutral
{{ $t('shop.all.artikelnummer') }}:
MS 31563-200

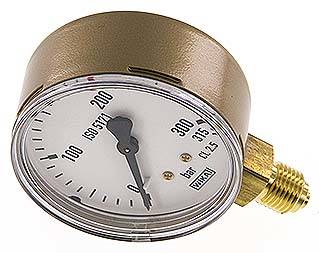

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Housing: brass-coloured steel with pressure relief opening in the rear wall, measuring system and connection: Cu alloy, window: polycarbonate
Connection thread:
G 1/4" *
Class:
2,5
Temperature range:
-20 to +60 °C
Protection class:
IP 42
Note:
WIKA Type 111.11
Optional:
ISO factory calibration (following DIN EN 837-1, determination of measurement deviation and hysteresis), DAkkS-DKD calibration (in accordance with DKD-R 6-1, traceable and accredited in accordance with DIN EN ISO/IEC 17025, decision rule 4)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Display range [bar] | 0 - 315 |
| Scale division [bar] | 10 |
| for medium | neutral |
Further information:
| {{ $t('shop.all.gewicht') }} | 140 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571500320 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 90262040 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | WIKA (WEEE DE92770372) |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MS 31563-200.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
