Data sheet

5/3-way solenoid valve, G 1/8", Centre position closed, 230 V AC
Item number:
M 04530HN 230V

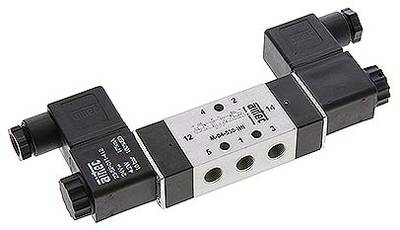

Example illustration
Item description
Materials:
Body: anodized aluminium and plastic, internal parts: stainless steel and brass, seal: plastic / NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Structural shape solenoid coil:
N (plug size 1) (M 20 530, M 20 533: O, plug size 0)
Pressure input:
Connection 1
Properties
Ver­sion Stan­dard
Con­trol volt­age 230 V AC
func­tion Cen­tre po­si­tion closed
Thread (3x) G 1/8"
Thread ex­haust air (2x) G 1/8"
Nom­i­nal width [mm] 4
flow [l/min] 360
Op­er­at­ing pres­sure [bar] 3 - 10
Power con­sump­tion (AC) [VA] 4
Spare so­le­noid coil MAG N 230V
Further information:
Weight 300 g / pcs
GTIN 4050571470395
Tariff No. 84812090
Manufacturer Airtec (WEEE DE94696834 )
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number M 04530HN 230V.
