Data sheet
ISO valve (size 1), 5/3-way Centre position vented, 230 V AC
{{ $t('shop.all.artikelnummer') }}:
MI 01533HN 230V

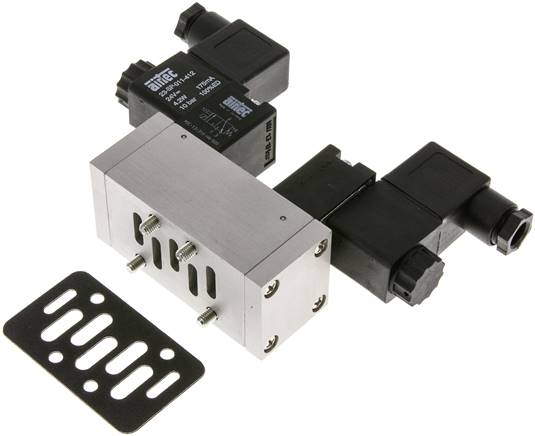

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: anodized aluminium, internal parts: stainless steel and brass, seal: plastic, NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
N (plug size 1)
Scope of delivery:
Valve including flange gasket, fixing screws, coil(s) and plug.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Control voltage | 230 V AC |
| Switching | 5/3-way |
| function | Centre position vented |
| ISO size | 1 |
| flow [l/min] | 1610 |
| Operating pressure [bar] | 3 - 10 |
| Power consumption (AC) [VA] | 4 |
| Spare solenoid coil | MAG N 230V |
Further information:
| {{ $t('shop.all.gewicht') }} | 550 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571492021 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
Figure
Drawing:
Zeichnung: Anschlussbild ISO 5999-1 (Größe 1)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MI 01533HN 230V.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
