Podatkovni list

Safety coupling socket (NW7,2) G 1/4"(Female thread), Eco
{{ $t('shop.all.artikelnummer') }}:
KDGISI 14 NW7 E

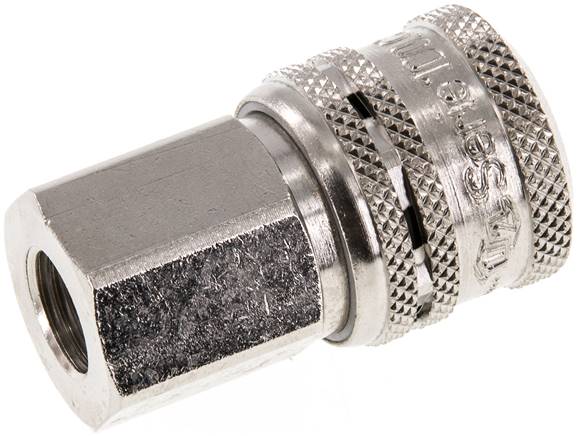

Vzorčni prikaz
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, nickel-plated steel, seal: NBR
Temperature range:
-20 do +100 °C
Operating pressure:
0 - 12 bar (Eco: up to max. 8* bar)
Flow***:
1800 l/min (Eco: 1100 l/min)
Function:
The coupling occurs as for standard couplings, by inserting the push in nipple into the coupling socket. Uncoupling occurs in two steps: By pushing back the unlocking sleeve, the coupling socket closes and ventilates the coupling plug while this is still held in the coupling socket. The plug is then released by pulling the unlocking sleeve. The dangerous recoil effect is thus prevented.
Advantages:
•no risk of injury when releasing the coupling as the plug does not jump out,
•easy to use (release like standard couplings)
Recommendation:
Use coupling plugs made of hardened steel!
Compatible with**:
Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Navoj notranji G 1/4"
Izvedba Eco
dejanska nazivna širina 7,2
Obratovalni tlak 0 - 8
Dodatne informacije:
{{ $t('shop.all.gewicht') }} 115 g / Kos
{{ $t('shop.all.gtin') }} 4050571397074
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Slika
Več informacij o tem artiklu in možnostih naročanja najdete v naši spletni trgovini https://www.landefeld.de pod številko artikla KDGISI 14 NW7 E.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Nemčija
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
Naši izdelki in blago so na splošno namenjeni samo za industrijsko in komercialno uporabo.
Stanje: 13.12.2025
