Data sheet

Hydraulic coupling ISO 7241-1B, Sleeve, NPT 3/8"(Female thread), Steel
{{ $t('shop.all.artikelnummer') }}:
VAM 38 ST-NPT

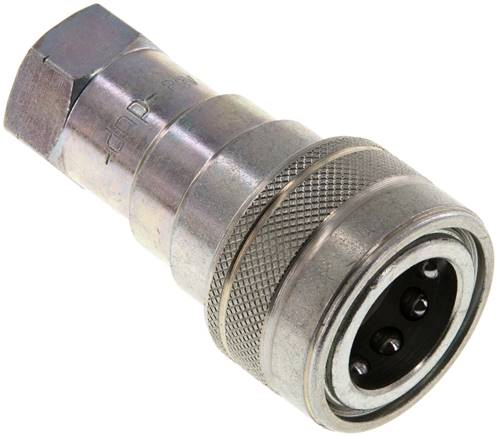

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: zinc plated steel, seal: O-ring: NBR, support ring: PTFE
Temperature range:
-25 to +120 °C
Optional:
NPT thread -NPT, plug with pressure eliminator (can be coupled, even if dynamic pressure has built up on the plug side in the uncoupled state, due to e.g. solar irradiation) -DE
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Sleeve
Thread NPT 3/8"
PN [bar] 325
A [mm] 19,1
B [mm] 35
DN (ISO) [mm] 10
Spare gasket sets (FKM/PTFE) VAM 38 DI
Further information:
{{ $t('shop.all.gewicht') }} 200 g / pcs
{{ $t('shop.all.gtin') }} 4050571717568
{{ $t('shop.display.artikel.zollwarennummer') }} 84812010
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Sizing for hydraulic couplings ISO 7241-1B
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number VAM 38 ST-NPT.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
