Data sheet

ACE clamping flange, M 45x1,5, side mounting
{{ $t('shop.all.artikelnummer') }}:
S 45

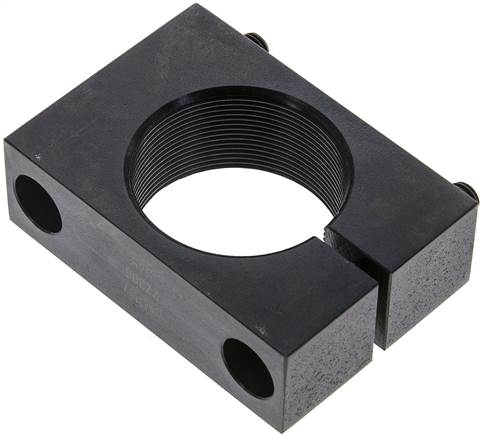

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Note:
The clamping flanges ...SC2 must be countered with the nuts on the shock absorbers, all other flanges are clamped with screws.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version side mounting
Suitable for shock absorbers MA 45..., MC 45..., SC 45...
Thread B M 45x1,5
A [mm] 56
C [mm] 25
D M 8
E [mm] 60
F [mm] 80
G [mm] 10,0
Further information:
{{ $t('shop.all.gewicht') }} 1,1 kg / pcs
{{ $t('shop.all.gtin') }} 4050571609313
{{ $t('shop.display.artikel.zollwarennummer') }} 84879059
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} ACE
Figure
Drawing:
Drawing: Clamping flange for shock absorber, side mounting
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number S 45.
