Data sheet

FUTURA Precision pressure regulator, G 1/2", 0,5 to 8bar
{{ $t('shop.all.artikelnummer') }}:
RP 12 F

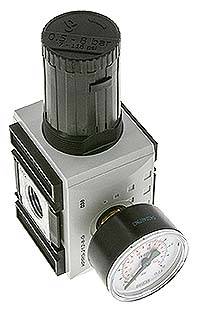

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
Self-relieving pressure regulator
Materials:
Body: PA 66 GF60, spring hood: POM, diaphragms and seals: NBR
Temperature range:
-10 to +50 °C
Input pressure:
Max. 16 bar (model series 0: max 12 bar)
Pressure gauge connection:
G 1/4" (model series 0: G 1/8")
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series,
•Hand wheel can be locked by pressing down on it and bolted with a lock - please use VHS 20. Model series 0 cannot be locked.
Switch panel thread:
M 42x1,5
Scope of delivery:
Pressure regulator incl. 50 mm pressure gauge
Flow:
G 3/8": 4500 l/min, G 1/2": 5200 l/min, secondary vent: 70 l/min (precision pressure regulator 120 l/min)
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Optional:
Safety version:with upstream lockable ball valve and filler valve -Si
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Precision pressure regulator**
Thread G 1/2"
Pressure regulation range [bar] 0,5 - 8
Pressure gauge display [bar] 0 - 10
Mounting brackets W 2 F
Coupling kit KP 2 F
Coupling kit with wall console KPW 2 F
input pressure [bar] max. 16
Further information:
{{ $t('shop.all.gewicht') }} 550 g / pcs
{{ $t('shop.all.gtin') }} 4050571604189
{{ $t('shop.display.artikel.zollwarennummer') }} 84811099
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RP 12 F.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
