Data sheet

Compact cylinders, single acting, piston 20 mm, stroke 20 mm
Item number:
NXE 20/20-AG

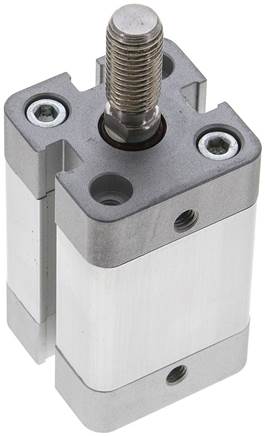

Example illustration
Item description
Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium, piston rod: 1.4305, seal: PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -male thread
Properties
Pis­ton di­am­e­ter [mm] 20
Stroke [mm] 20
Ver­sion Pis­ton rod with male thread
G2 (pis­ton rod male thread) M 10x1,25
M (com­pressed air port) M 5
Re­pair sets NXE 20 REP
A [mm] 36
C [mm] 6
D [mm] 4,2
E M 5
F [mm] 7,5
J [mm] 38,0
L [mm] 0
N [mm] 8,0
O [mm] 12,25
P [mm] 22
Q [mm] 10
T [mm] 8
U [mm] 4,5
V [mm] 22
Z [mm] 4,5
Further information:
Weight 185 g / pcs
GTIN 4050571532253
Tariff No. 84123100
RoHS compliant Yes
Manufacturer Airtec (WEEE DE94696834 )
Figure
Drawing:
Drawing: Compact cylinder UNITOP, standard
Drawing: Piston rod with male thread
