Data sheet
Straight cutting ring fitting 12 L (M18x1,5), nickel-plated brass
{{ $t('shop.all.artikelnummer') }}:
G 12 L MSV

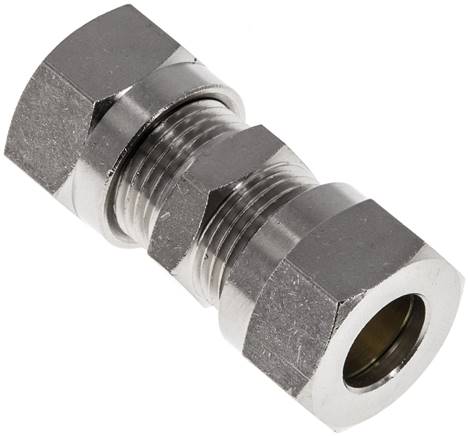

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, cutting ring: brass
Temperature range:
-60°C up to max. +300°C (swivel screw connections: -20°C up to max. +80°C)
Recommended raw materials:
Copper, polyamide (with reinforced sleeve)
Note:
When using soft copper tube a correction factor of 0.65 must be used (pressure x 0.65). When using polyamide tube the operating pressure of the tube applies.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Model series | light model series |
| Pipe diameter (outer) | 12 L (M18x1,5) |
| Operating pressure with hard copper tube [bar] | 75 |
| Temperature range [°C] | -60 to +300 |
Further information:
| {{ $t('shop.all.gewicht') }} | 90 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571311711 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number G 12 L MSV.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
