Data sheet
Coroplast electrical insulation tape, VDE, 50mm/25m., red
{{ $t('shop.all.artikelnummer') }}:
ISOBAND 50X25 RO

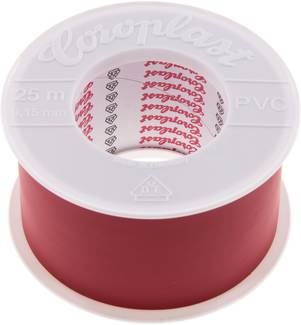

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Description:
Coroplast-electrical insulation tape made of soft PVC (DIN EN 60454-3-1F-PVC /105 / A-Tx Type 10) with VDE-test marks can be used for all normal insulation work, repairs of damaged insulations, taping cables etc. It is flame-resistant and non-ageing, has a good resistance to chemicals (including operating resources of motor vehicles) and is wrinkle-free around the uneven areas.
Temperature range:
-10 to +105 °C
Dielectric strength:
> 40 kV/mm
Strap thickness:
0,15 mm
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Roller width [mm] | 50 |
| Roll length [MTR] | 25 |
| colour | red |
Further information:
| {{ $t('shop.all.gewicht') }} | 270 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571389833 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39191012 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Coroplast |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number ISOBAND 50X25 RO.
