Data sheet
FISCHER heavy duty anchor FAZ II Plus 16x50mm, 173mm length, Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
DUBEL FAZ 16/50

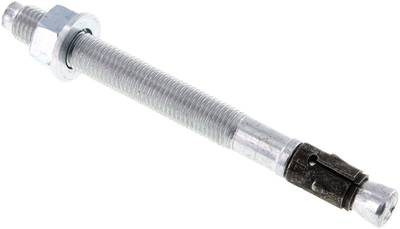

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
For mounting heavy loads in cracked concrete (tensile area) and cracked concrete (pressure zone).
Recommended torque during anchoring:
Ø 8 : 20 Nm, Ø 10 : 45 Nm, Ø 12 : 60 Nm, Ø 16 : 110 Nm, Ø 20 : 200 Nm, Ø 24 : 270 Nm
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Bore diameter [mm] | 16 |
| Min. hole depth for through hole installation (h2) [mm] | 158 |
| min. anchoring depth (hef) [mm] | 85 |
| Anchor rod [mm] | 173 |
| Max. usable length (tfix) [mm] | 50 |
| Male thread x thread length | M 16 x 109 |
Further information:
| {{ $t('shop.all.gewicht') }} | 270 g / pcs |
| {{ $t('shop.all.gtin') }} | 4006209958643 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181900 |
| {{ $t('shop.all.hersteller') }} | Fischer |
Figure
Drawing:
Drawing: Fischer FAZ II Plus heavy-duty anchor bolt
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DUBEL FAZ 16/50.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
