Data sheet

FISCHER heavy duty anchor FAZ II Plus 8x30mm, 95mm length, Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
DUBEL FAZ 8/30

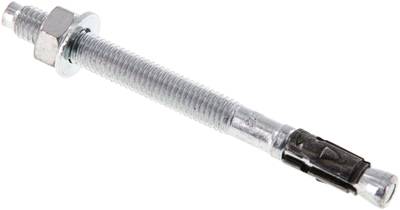

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
For mounting heavy loads in cracked concrete (tensile area) and cracked concrete (pressure zone).
Recommended torque during anchoring:
Ø 8 : 20 Nm, Ø 10 : 45 Nm, Ø 12 : 60 Nm, Ø 16 : 110 Nm, Ø 20 : 200 Nm, Ø 24 : 270 Nm
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Zinc plated steel
Bore diameter [mm] 8
Min. hole depth for through hole installation (h2) [mm] 88
min. anchoring depth (hef) [mm] 45
Anchor rod [mm] 95
Max. usable length (tfix) [mm] 30
Male thread x thread length M 8 x 58
Further information:
{{ $t('shop.all.gewicht') }} 37 g / pcs
{{ $t('shop.all.gtin') }} 4006209948774
{{ $t('shop.display.artikel.zollwarennummer') }} 73181900
{{ $t('shop.all.hersteller') }} Fischer
Figure
Drawing:
Drawing: Fischer FAZ II Plus heavy-duty anchor bolt
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DUBEL FAZ 8/30.
