Data sheet
Brass ball valve, Eco-Line, R 3/4" / Rp 3/4", 0 to 25bar
{{ $t('shop.all.artikelnummer') }}:
KH 34 B IA E

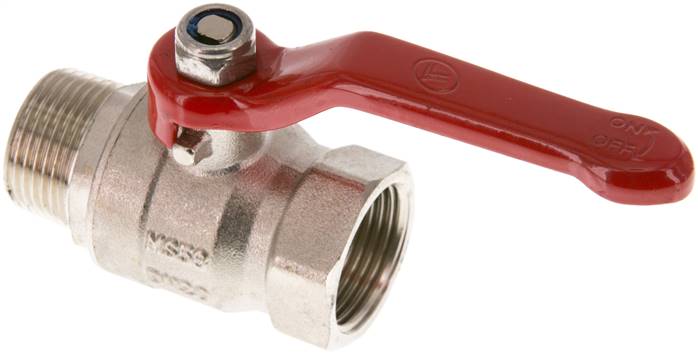

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, ball: chrome-plated brass, seals: PTFE / NBR
Temperature range:
-20 to +95 °C
Media:
Compressed air, water, oils
Optional:
with butterfly handle -KN (1/4" - 1-1/4")
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Standard |
| G1 (male thread) | R 3/4" |
| G2 (female thread) | Rp 3/4" |
| DN [mm] | 18 |
| L [mm] | 63,8 |
| PN [bar] | 0 - 25 |
| H [mm] | 46 |
| R [mm] | 85 |
| replacement handles | G KH 1234 B E |
Further information:
| {{ $t('shop.all.gewicht') }} | 270 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571419837 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818081 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Screw-in ball valve, 2-part, full bore, short design
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KH 34 B IA E.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
