Data sheet
Hammer head thread plate HG, M 10, Zinc plated steel (33 x 23 x 6)
{{ $t('shop.all.artikelnummer') }}:
FI HG 38 M10

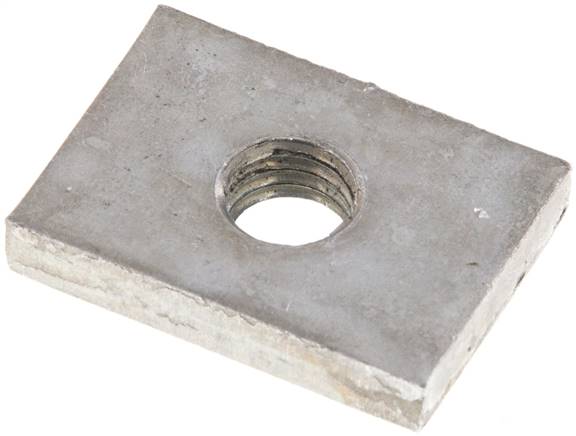

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Hammerhead threaded plates for easy fastening of threaded pins or rods in mounting rails. Mounting is done by inserting the hammerhead threaded plate into the rail or bracket. After alignment, the threaded plate should be secured with a nut. Fits all standard mounting rails with 15, 16 and 17 mm slot width.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| suitable for profile type | 38/40, 40/60, 40/120 |
| Thread | M 10 |
| Dimensions [mm] | 33 x 23 x 6 |
Further information:
| {{ $t('shop.all.gewicht') }} | 32 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571870713 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269060 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number FI HG 38 M10.
