Data sheet
Angle brackets200 x 200mm, Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
FI WK 200/200

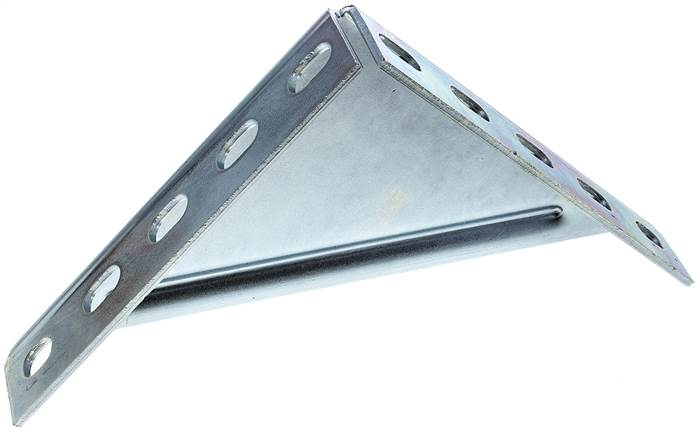

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Angle brackets for the establishing a stable and rigid rail load-bearing structures, cross-members and cantilever arms in connection with assembly rails. A wide range of options for wall, floor and ceiling installation. Can also be used in a manhole and freestanding. By screwing two isosceles angle brackets, higher load and bending values are basically achieved.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| suitable for profile type | 38/40, 40/60, 40/120, 41/21, 41/41 |
| Crossbeam x height [mm] | 200 x 200 |
| Fzul. (with 25 mm lever arm) [N] | 10.000 |
| Fzul. (with 100 mm lever arm) [N] | 5.000 |
| Fzul. (with 180 mm lever arm) [N] | 2.000 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571870898 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 83025000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number FI WK 200/200.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
