Data sheet
Rotary joint G 1/4"-2 coupling plugs NW 7
{{ $t('shop.all.artikelnummer') }}:
DG 14 KSNW7

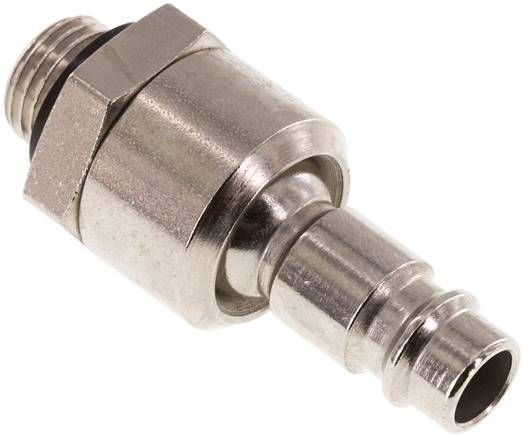

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
For slow rotary movements, e.g. to avoid the twisting of hoses.
Materials:
Nickel-plated steel
Temperature range:
0 to +60 °C
Operating pressure:
0 to 15 bar
Media:
Compressed air
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread external | G 1/4" |
| Coupling plug | 2 coupling plugs NW 7** |
Further information:
| {{ $t('shop.all.gewicht') }} | 60 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571248703 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DG 14 KSNW7.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
