Data sheet

Screw connection, T banjo G 1/8"-6x4mm, 1.4571 o.Nuts
{{ $t('shop.all.artikelnummer') }}:
TK 184 ES

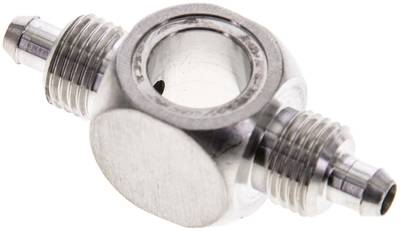

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Operating pressure:
-0,95 to 20 bar
Temperature range:
-20 to +220 °C
Warning: Order accessories at the same time!
2 x union nuts, 1 x banjo bolt
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material 1.4571
for Banjo bolt G 1/8"
Hose diameter (outer x inner) [mm] 6x4
H [mm] 15
Union nut M 10x1
Banjo bolt 1.4571 VT 181/24 ES
Nut 1.4571 MCK 4 ES
Nut MS nickel-plated MCK 4 MSV
Nut POM MCK 4 K
Further information:
{{ $t('shop.all.gewicht') }} 26 g / pcs
{{ $t('shop.all.gtin') }} 4050571697273
{{ $t('shop.display.artikel.zollwarennummer') }} 73072910
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number TK 184 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
