Data sheet
Thread cutter M 16 - Standard thread (DIN 352)
{{ $t('shop.all.artikelnummer') }}:
GEW H M16

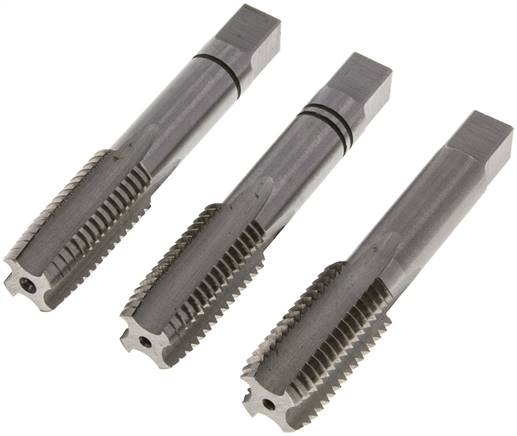

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Description:
3-piece manual tap set (fine thread 2-piece), comprising pre-cutter, centre tap and finishing tap for metric threads in accordance with DIN ISO 13. Flanks relief ground, tolerance in accordance with ISO 2 / 6H, gate cut: 2 - 3 turns.
Quality:
HSS-G:
Use for steel, cast steel alloys and non-alloys (<800 N/mm² tensile strength), grey-, malleable-, ductile-, cast and sintered iron, nickel silver, graphite and short cutting aluminium alloys, brass and bronze.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Manual tap set |
| Thread type | Standard thread (DIN 352) |
| Thread | M 16 |
| Slope [mm] | 2,00 |
| Core hole diameter [mm] | 14 |
| Square (DIN 10) [mm] | 9 |
Further information:
| {{ $t('shop.all.gewicht') }} | 230 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571165765 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 82074010 |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number GEW H M16.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
