Data sheet
Machine tap for blind hole, 35° right-hand helix M 4 (HSS-E)
{{ $t('shop.all.artikelnummer') }}:
GEW MSV M4 HSSE

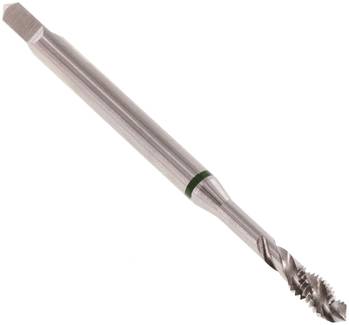

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Description:
Machine taps for metric threads according to DIN ISO 13. Flanks undercut, tolerances in accordance with ISO 2 / 6H. Screw tap version according to DIN 371 (reinforced shank), from M12 according to DIN 376 (overflow shank)
Quality:
HSS-G Co 5 (HSS-E):
Use for steel, cast steel alloys and non-alloys (<1000 N/mm² tensile strength), grey, malleable, ductile, cast and sintered iron, nickel silver, graphite, short cutting aluminium alloys, brass and bronze
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Machine tap for blind hole, 35° right-hand helix |
| Thread | M 4 |
| Core hole diameter [mm] | 3,3 |
| Square (DIN 10) [mm] | 3,4 |
| Total length [mm] | 63 |
| Thread length [mm] | 6 |
| Shaft diameter [mm] | 4,5 |
| First cut | Shape C, 2 - 3 gears |
Further information:
| {{ $t('shop.all.gewicht') }} | 8,4 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571161866 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 82074010 |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number GEW MSV M4 HSSE.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
