Data sheet
Round die DIN EN 22568, fine thread M 12x1,5
{{ $t('shop.all.artikelnummer') }}:
GEW SE M12X1,5

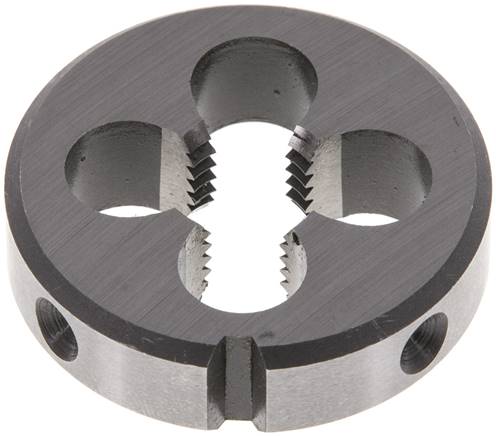

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Description:
Round dies, shape B, pre-slotted, closed for metric threads in accordance with DIN ISO 13. Tolerances in accordance with ISO 6g.
Quality:
HSS-G:
Use for steel, cast steel alloys and non-alloys (<800 N/mm² tensile strength), grey-, malleable-, ductile-, cast and sintered iron, nickel silver, graphite and short cutting aluminium alloys, brass and bronze.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | fine thread |
| Thread | M 12x1,5 |
| Slope [mm] | 1,50 |
| Outer diameter [mm] | 38 |
| Thickness [mm] | 10 |
Further information:
| {{ $t('shop.all.gewicht') }} | 65 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571164218 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 82074030 |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number GEW SE M12X1,5.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
