Data sheet

Socket shut-off valve, stainlesssteel, G 1-1/2", PN 16, Eco-Line
{{ $t('shop.all.artikelnummer') }}:
MUA 112 ES E

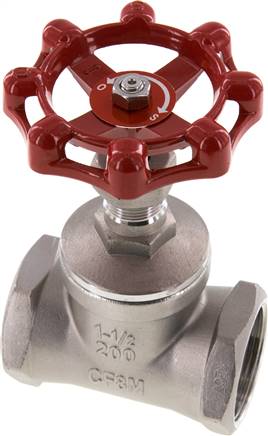

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: 1.4408, spindle seal: PTFE, handwheel: Aluminium, seat: metal-sealing (assembly uses only silicone-free seals and lubricants!)
Temperature range:
-20 to +200 °C
Media:
Liquids, gases, air, heating and hydraulic oils, fuels and water, chemicals
Optional:
Certificate 3.1
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Standard
G G 1-1/2"
DN [mm] 31
L [mm] 94
PN [bar] 0 - 16
H [mm] 147
R [mm] 90
replacement handwheel MUA 112 ES E RAD
Further information:
{{ $t('shop.all.gewicht') }} 1,3 kg / pcs
{{ $t('shop.all.gtin') }} 4050571507930
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Stainless steel sleeve shut-off valve
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MUA 112 ES E.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
