Data sheet
Drilling screw DIN 7504K, Hexagon head (form K), 4,8x38mm
{{ $t('shop.all.artikelnummer') }}:
7504K-4,8X38

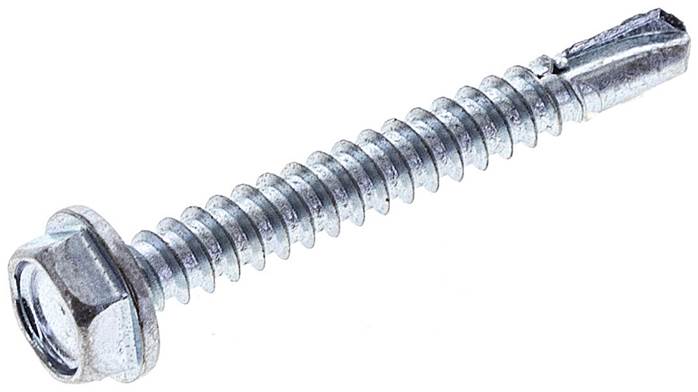

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
hardened steel, zinc plated
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Hexagon head (form K) |
| D [mm] | 4,8 |
| L [mm] | 38 |
| K (max) [mm] | 4,45 |
| S [mm] | 8 |
Further information:
| {{ $t('shop.all.gewicht') }} | 4,7 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571126902 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181900 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Drill screw with hexagon head DIN 7504 K / ISO 15480
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 7504K-4,8X38.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
