Data sheet
Drilling screw DIN 7504M, Lens head (form M), 5,5x32mm
{{ $t('shop.all.artikelnummer') }}:
7504M-5,5X32

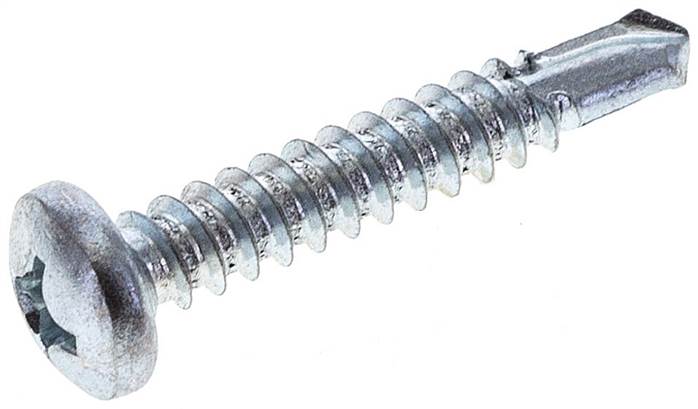

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
hardened steel, zinc plated
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Lens head (form M) |
| D [mm] | 5,5 |
| L [mm] | 32 |
| K (max) [mm] | 3,95 |
| Dk [mm] | 10,8 |
| Cross recess | PH3 |
Further information:
| {{ $t('shop.all.gewicht') }} | 5 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571127367 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181900 |
Figure
Drawing:
Drawing: Drill screw with raised countersunk head DIN 7504 M / ISO 15481
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number 7504M-5,5X32.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
