Data sheet
MULTIFIX filter regulator, G 1/4", 0,2 to 6bar, n. resettable
{{ $t('shop.all.artikelnummer') }}:
FR 014-6 NB

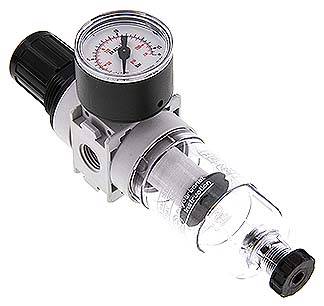

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
non-relieving (without secondary venting)
Materials:
Body: PA 66 GF60, spring hood: POM, diaphragms and seals: NBR, container: polycarbonate
Temperature range:
max. +50 °C
Input pressure:
max. 16 bar (if a coupling kit is used, max. 12 bar)
Pressure gauge connection:
G 1/8"
Switch panel thread:
M 30x1,5
Media:
Water, compressed air, neutral gases
Scope of delivery:
Pressure reducer / filter pressure reducer including 40 mm pressure gauge
Flow:
700 l/min (corresponds to approx. 2,5 l/min with water as the medium)
Max. condensate amount:
16 cm³
Pore width in the filter:
5 µm
Erreichbare Druckluftqualität (ISO 8573-1):
[6:4:4] (ohne Kältetrockner: [6:7:4])
Optional:
can be locked using a cylinder lock -K, can be locked using a cylinder lock with E 11 closure*** -KE11, version with metal bowl -MB
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Further information:
| {{ $t('shop.all.gewicht') }} | 220 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571303754 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84811005 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number FR 014-6 NB.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
