Data sheet
ORFS screwed connection UNS 1"-14(male thread)-G 3/8"
{{ $t('shop.all.artikelnummer') }}:
GE 10-38 ORFS

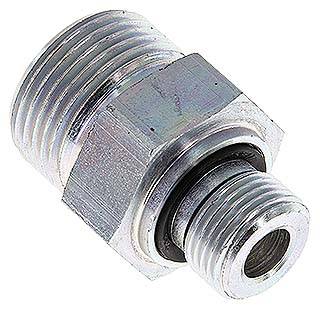

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| ORFS (external) | UNS 1"-14 |
| Screw-in thread* G | G 3/8" |
| PN [bar] | 400 |
Further information:
| {{ $t('shop.all.gewicht') }} | 100 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571316563 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73079290 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Zeichnung: Gerade ORFS-Einschraubverschraubung (G-Gewinde)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number GE 10-38 ORFS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
