Data sheet
ORFS screw connection UN 1-3/16"-12(Female thread)-UNS 1"-14(male thread)
{{ $t('shop.all.artikelnummer') }}:
RED 12-10 ORFS

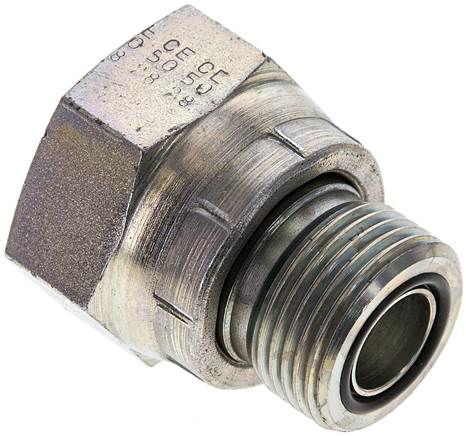

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| ORFS1 (internal) | UN 1-3/16"-12 |
| ORFS2 (external) | UNS 1"-14 |
| PN [bar] | 400 |
Further information:
| {{ $t('shop.all.gewicht') }} | 155 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571573539 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269098 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: ORFS reducer fitting with union nut
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RED 12-10 ORFS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
