Data sheet
ORFS elbow screw connection UN 11/16"-16-G 1/4"
{{ $t('shop.all.artikelnummer') }}:
WE 06-14 ORFS

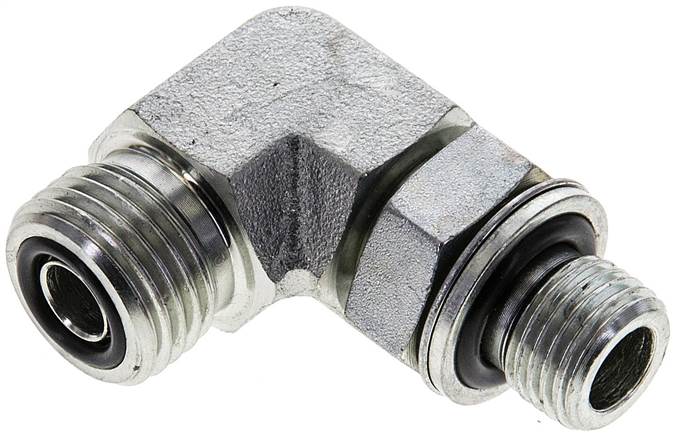

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| ORFS (external) | UN 11/16"-16 |
| Screw-in thread* G | G 1/4" |
| PN [bar] | 400 |
Further information:
| {{ $t('shop.all.gewicht') }} | 95 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571738075 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269098 |
Figure
Drawing:
Drawing: Angular ORFS screw-in fitting (G-thread)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number WE 06-14 ORFS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
