Data sheet
Membrane nicht rücksteuerbar
{{ $t('shop.all.artikelnummer') }}:
MEMB R10MS-NB

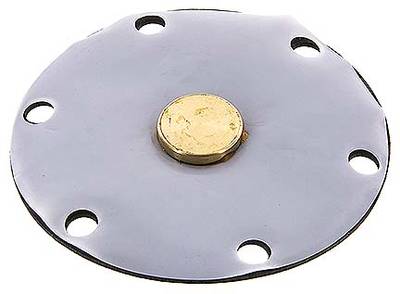

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Flow:
Kv value 9,7 m³/h, 9000 l/min* (brass: Kv value 9,8 m³/h, 8300 l/min*)
Version:
Self-relieving (with secondary vent), optionally non-relieving
Materials:
Seals: FKM, membrane: NBR (PTFE-coated), type brass: Spring bonnet of aluminium, spindle of steel
Temperature range:
-20 to +80 °C
Media:
lubricated and unlubricated compressed air, non-toxic gases (with option -NB: gases and liquids, demineralised water, with option -CO: CO2 (only for type brass)
Pressure gauge connection:
G 1/4"
Optional:
Version non-reversible for gases and liquids (NBR membrane, PTFE-coated), -NB, Version non-reversible with EPDM seals for CO2 (only for type brass) -CO
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Replacement diaphragm (not for piston type regulator) made of NBR/PTFE, not resettable, for regulating option -NB & -CO |
Further information:
| {{ $t('shop.all.gewicht') }} | 165 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571486259 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 40169991 |
Figure
Drawing:
Drawing: Pressure regulator (solid), values in brackets apply to brass type
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MEMB R10MS-NB.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
