Data sheet

Pressure gauge connection M 16x2 (MT) - G 1/2", 1.4571
{{ $t('shop.all.artikelnummer') }}:
ME MAAG 12 ES

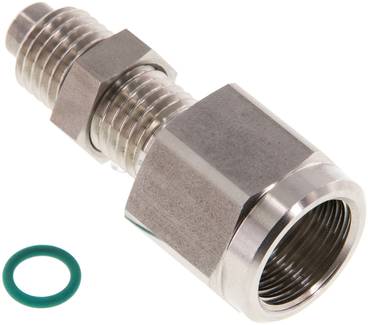

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Type galvanised steel: Body, chain and cap: Galvanised steel, gaskets: NBR

Type 1.4571: Body: 1.4571, chain and cap: V2A, Seals: FKM
Temperature range:
-20°C to max. +100°C (1.4571: -20°C up to max. +200°C)
Application:
Test couplings are used to control the operating pressure as well as for venting if inconveniently laid tubes are in use. The screw coupling is closed and opens mechanically only after a measuring hose is screwed into it. In this way a connection is made to the medium.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material 1.4571
Version to screw into the measuring hose
Female thread G1 (pressure gauge) G 1/2"
Thread G2 (test couplings) M 16x2 (Male thread)
Bulkhead thread M 16
Emax [mm] 12
Operating pressure [bar] 630
Temperature range [°C] -20 to +200
Further information:
{{ $t('shop.all.gewicht') }} 130 g / pcs
{{ $t('shop.all.gtin') }} 4050571485924
{{ $t('shop.display.artikel.zollwarennummer') }} 84812010
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Pressure gauge connection for screwing into the measuring hose
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number ME MAAG 12 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
