Data sheet
seal (dairy thread) DN 10, EPDM (black), 12x20x4,5mm
{{ $t('shop.all.artikelnummer') }}:
DNMA 3810 EPDM

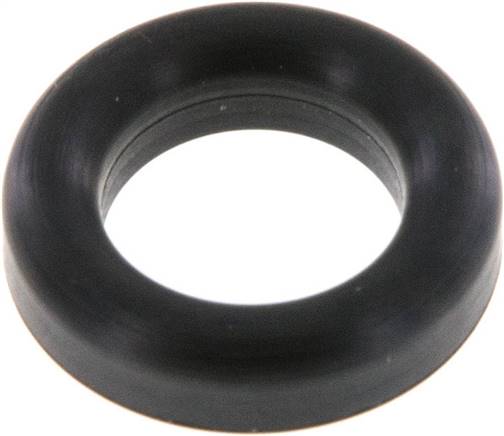

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
All materials conform to the requirements of the ordinances FDA 21 CFR 177.2600, or, as the case may be, FDA 21 CFR 177.1550 and (EC) 1935/2004. Fully encased seals only FDA CFR 177.1550.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | EPDM (black) |
| d [mm] | 12 |
| D [mm] | 20 |
| H [mm] | 4,5 |
| for threaded end DN [mm] | 10 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,1 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571259655 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 40169300 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Seal for threaded connection pieces (dairy thread), DIN 11851
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DNMA 3810 EPDM.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
