Data sheet
Hydraulic check valves, G 1/4", PN350, opening pressure.3,0bar
{{ $t('shop.all.artikelnummer') }}:
RUCK 14 HD-3

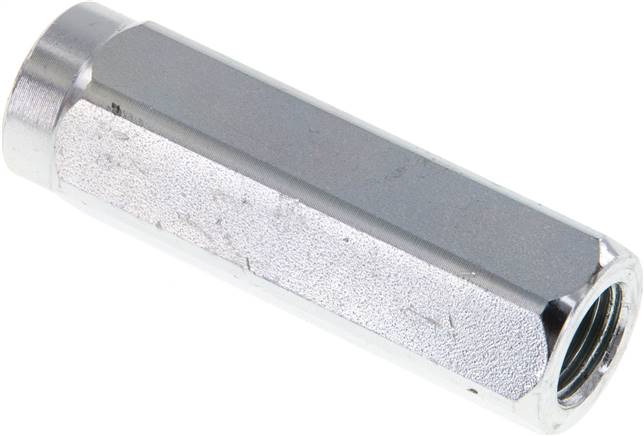

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: galvanised carbon steel, seal: metal-sealing tapered seat
Temperature range:
-25 to +200 °C
Optional:
Opening pressures (from G 1/4"): 1.0 bar -1, 3.0 bar -3, 5.0 bar -5, 8.0 bar -8
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| G | G 1/4" |
| DN [mm] | 6 |
| L [mm] | 62 |
| SW [mm] | 19 |
| PN [bar] | 350 |
| opening pressure [bar] | 3,0 |
Further information:
| {{ $t('shop.all.gewicht') }} | 105 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571607302 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84813099 |
Figure
Drawing:
Zeichnung: Rückschlagventil
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RUCK 14 HD-3.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
