Podatkovni list
MULTIFIX Filtrirni regulator, G 1/4", 0,2 do 6bar, model series 1
{{ $t('shop.all.artikelnummer') }}:
FR 14-6 AM

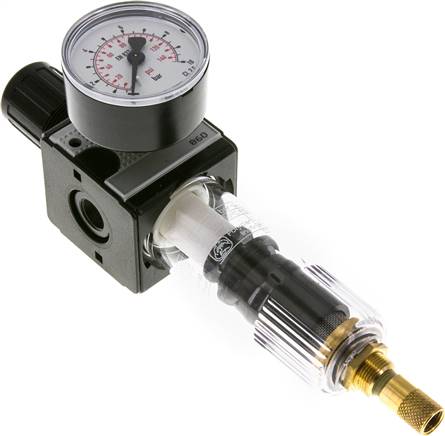

Vzorčni prikaz
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
Self-relieving pressure regulator with additional filtering using the centrifugal principle and sintered filter
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR, condensate container: polycarbonate
Temperature range:
-10 do +60 °C
Input pressure:
1.5 - 16 bar (model series 0 when using coupling kit 1.5 - 12 bar)
Pressure gauge connection:
G 1/4" (model series 0: G 1/8")
Pore width in the filter:
5 µm (model series 5: 40 µm)
Erreichbare Druckluftqualität (ISO 8573-1):
[6:4:4] (ohne Kältetrockner: [6:7:4]), Baureihe 5: [7:4:4] (ohne Kältetrockner: [7:7:4])
Condensate draining:
semi-automatic****
Media:
Compressed air, neutral gases
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it
Max. condensate amount:
25 cm³
Switch panel thread:
M 30x1,5
Scope of delivery:
Pressure regulator including 50 mm pressure gauge
Flow:
1600 l/min ***
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not E-11 closure)
Optional:
can be locked using a cylinder lock -K, can be locked using a cylinder lock with E 11 closure** -KE11, version with protective cage -S, Version with metal bowl and inspection tube -M, automatic discharge -AM, automatic discharge closed when not pressurised (0 - 16 bar) -AMNC, Safety version: can be locked with upstream lockable ball valve and start-up valve -Si
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Dodatne informacije:
| {{ $t('shop.all.gewicht') }} | 450 g / Kos |
| {{ $t('shop.all.gtin') }} | 4050571306021 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84811005 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Slika
Več informacij o tem artiklu in možnostih naročanja najdete v naši spletni trgovini https://www.landefeld.de pod številko artikla FR 14-6 AM.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Nemčija
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
Naši izdelki in blago so na splošno namenjeni samo za industrijsko in komercialno uporabo.
Naši izdelki in blago so na splošno namenjeni samo za industrijsko in komercialno uporabo.
Stanje: 13.12.2025
