Data sheet

Multi-channel fan nozzle, 47mm, G 1/4", Polypropylene (FDA-conformant)
{{ $t('shop.all.artikelnummer') }}:
FACH F PP

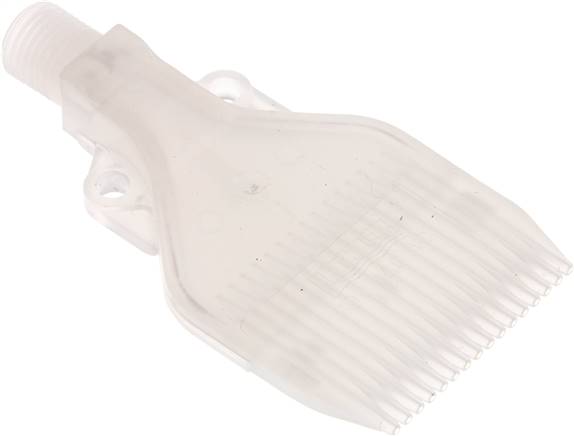

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Operating pressure:
max. 6 bar
Suitable:
Multi-channel nozzles are particularly quiet and economical. They are particularly suitable for large area blowing-off of water or dust as well as blowing out and further transport of stampings, plastic and elastic mouldings.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Polypropylene (FDA-conformant)
Width [mm] 47
Thread external G 1/4"
Adapter for screwing into blowguns with nozzle thread M 12x1.25 RN M12X1,25-14 MS
Air consumption at 4 bar [l/min] 416
Temperature range [°C] max. +60
Further information:
{{ $t('shop.all.gewicht') }} 14 g / pcs
{{ $t('shop.all.gtin') }} 4050571292805
{{ $t('shop.display.artikel.zollwarennummer') }} 39269097
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number FACH F PP.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
