Data sheet
Slotted nuts (dairy thread) Rd 52 x 1/6", 1.4301
{{ $t('shop.all.artikelnummer') }}:
DNMIMU 1025 ES-2A

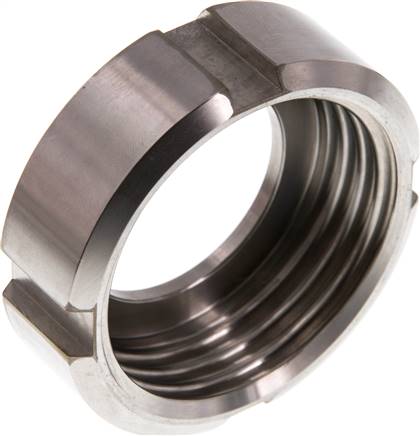

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Optional:
Material 1.4301 -2A
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4301 |
| RD | Rd 52 x 1/6" |
| for cone nozzle DN [mm] | 25 |
| D1 [mm] | 36 |
| D2 [mm] | 63 |
Further information:
| {{ $t('shop.all.gewicht') }} | 165 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571260262 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73072390 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Zeichnung: Nutmutter für Kegelstutzen (Milchgewinde), DIN 11851
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DNMIMU 1025 ES-2A.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
