Data sheet
Slotted nuts (dairy thread) Rd 58 x 1/6", 1.4301
Item number:
DNMIMU 11432 ES-2A
Example illustration
Item description
Optional:
Material 1.4301 -2A
Properties
| Material | 1.4301 |
| RD | Rd 58 x 1/6" |
| for cone nozzle DN [mm] | 32 |
| D1 [mm] | 42 |
| D2 [mm] | 70 |
Further information:
| Weight | 210 g / pcs |
| GTIN | 4050571260309 |
| Customs duty number | 73072910 |
| RoHS compliant | Yes |

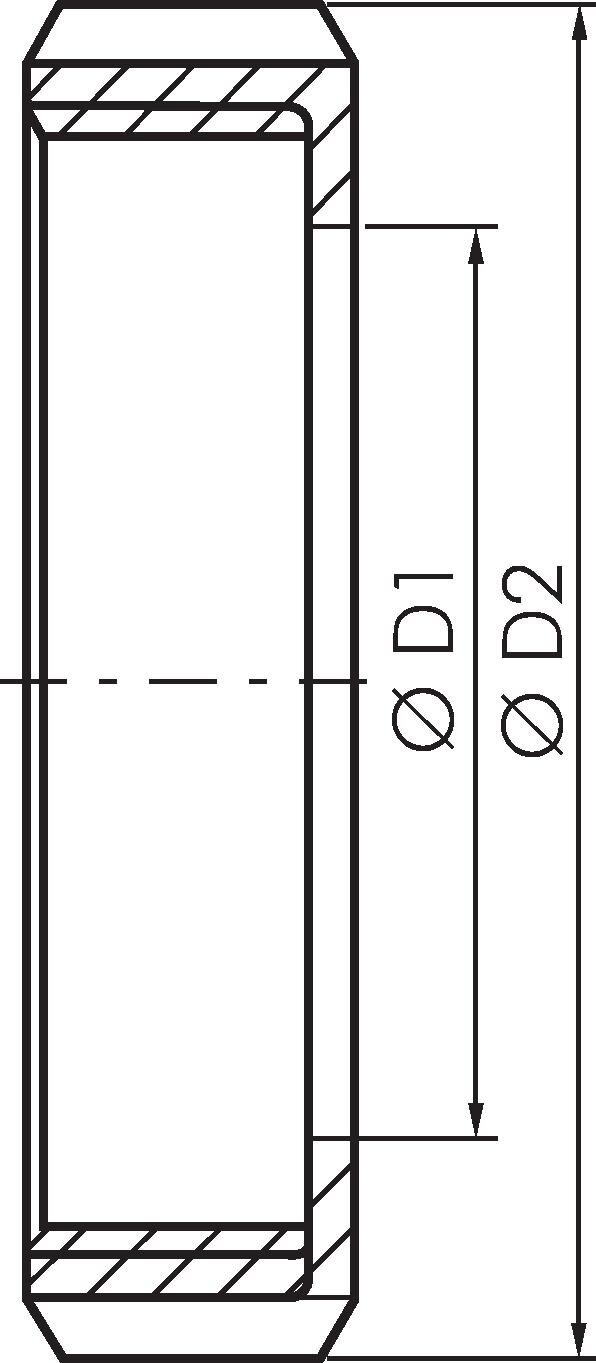

Drawing:
Drawing: Slotted nut for tapered socket (dairy thread), DIN 11851
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DNMIMU 11432 ES-2A.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 05.06.2025
