Data sheet

5/3-way solenoid valve, G 1/8", Centre position vented, 24 V DC
{{ $t('shop.all.artikelnummer') }}:
SF2403 IPSC-D4

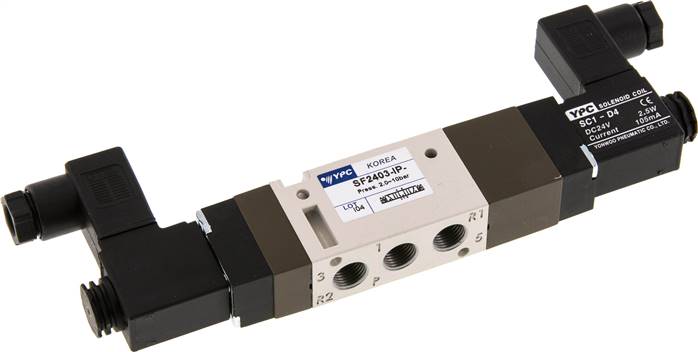

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Switching time (at 5 bar):
< 35 ms
Protection class:
IP 65 (with rectangular plug SY100: IP 40)
Structural shape solenoid coil:
L
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Control voltage 24 V DC
Version Standard plug (size 0)
function Centre position vented
Thread (3x) G 1/8"
Thread exhaust air (2x) G 1/8"
Operating pressure [bar] 2 - 10
flow [l/min] 490
Power consumption (DC) [W] 2,5
Spare solenoid coil MAG L 24V=
Further information:
{{ $t('shop.all.gewicht') }} 240 g / pcs
{{ $t('shop.all.gtin') }} 4050571622039
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} YPC
Figure
Drawing:
Drawing: 5/3-way solenoid valve
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SF2403 IPSC-D4.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
