Data sheet
3/2-way valve G 1/4", Pushbutton green
{{ $t('shop.all.artikelnummer') }}:
YMV410 FP-GRUN
Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: aluminium, slider: POM, seals: NBR
Temperature range:
-10 to +60 °C
Operating pressure:
0 to 8 bar
Flow:
700 l/min
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
Switch panel borehole:
Ø 30,5 mm
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Actuation | Pushbutton |
| colour | green |
| Thread (2x) | G 1/4" |
| Thread exhaust air (1x) | G 1/4" |
Further information:
| {{ $t('shop.all.gewicht') }} | 160 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571808006 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | YPC |
Figure

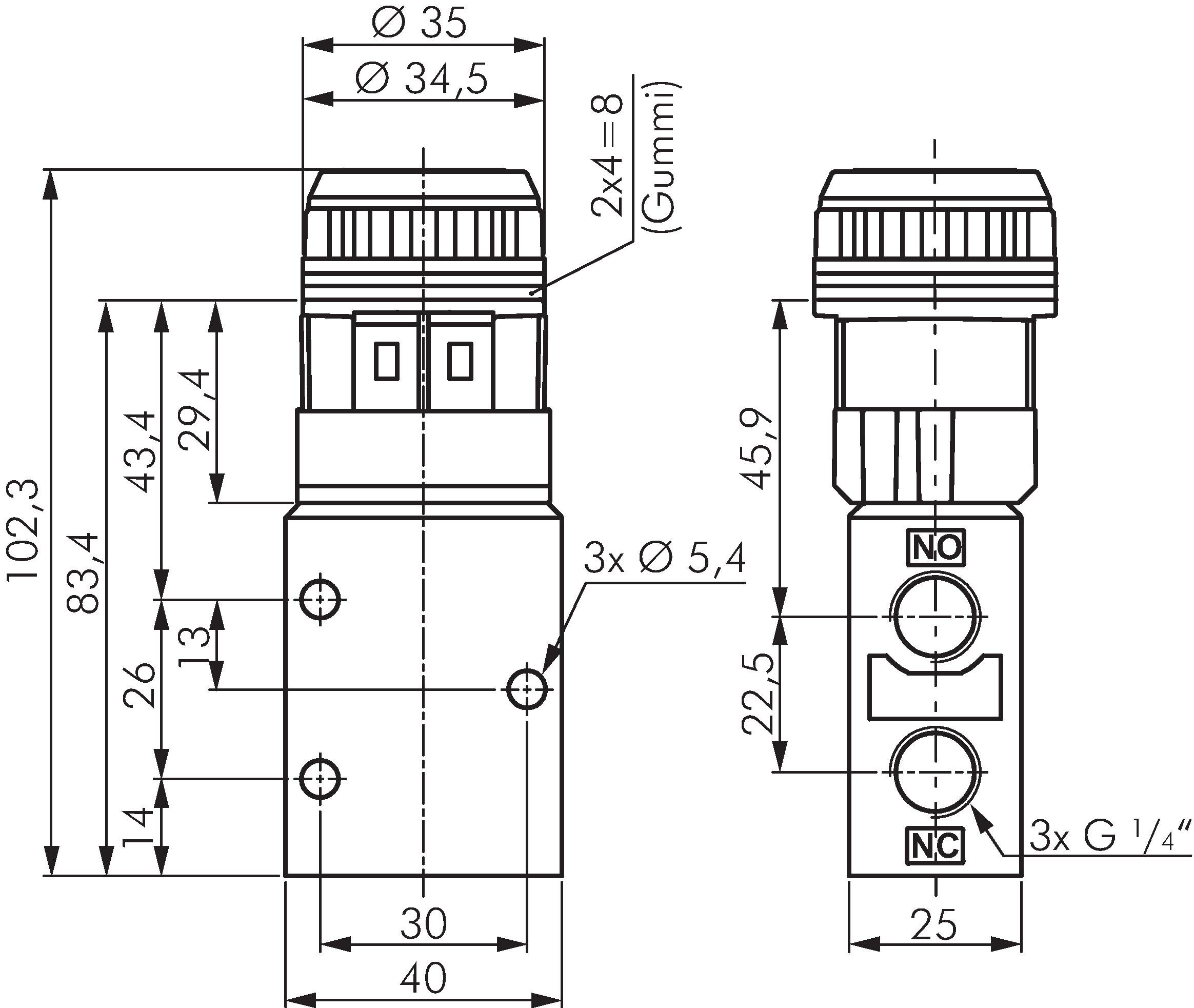

Drawing:
Drawing: Pushbutton
Drawing: Dimension switching panel borehole
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number YMV410 FP-GRUN.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
