Podatkovni list

ADNGF-20-10-P-A (554221) Compact cylinder
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO027317

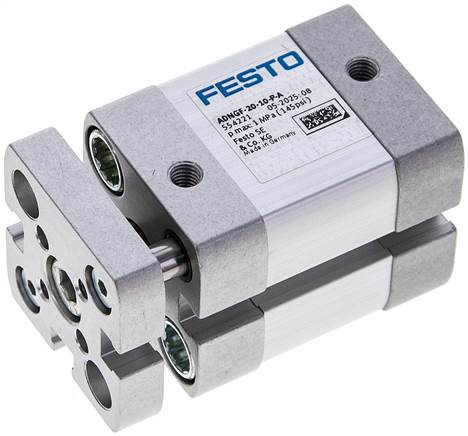

Vzorčni prikaz
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Stroke [mm] 10
Piston diameter 20 mm
Based on standard ISO 21287
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Construction set up Piston,
piston rod,
profile tube
Position detection For proximity switch
Anti-twist lock / guide Guide rod with yoke
Operating pressure [bar] 1.5 to 10
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Information about operating and control medium 2 - moderate corrosion stress
ambient temperature [°C] -20 to 80
LABS (PWIS) conformity [J] 0,20
Theoretical force at 6 bar, Return flow [N] 141
Theoretical force at 6 bar, flow [N] 188
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke [g] 60
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke [g] 26
Base weight at 0 mm stroke [g] 161
Supplement moved mass per 10 mm stroke [g] 11
Pneumatic connection M5
Material information RoHs compliant
Material collar screws aluminium,
anodized
Seals material TPE-U(PUR)
Piston rod material High-alloyed steel
Cylinder tube material Aluminium wrought alloy,
Smooth anodised
Dodatne informacije:
{{ $t('shop.all.gewicht') }} 175 g / Kos
{{ $t('shop.all.gtin') }} 4052568198497
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.all.hersteller') }} Festo
Slika
Več informacij o tem artiklu in možnostih naročanja najdete v naši spletni trgovini https://www.landefeld.de pod številko artikla OT-FESTO027317.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Nemčija
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
Naši izdelki in blago so na splošno namenjeni samo za industrijsko in komercialno uporabo.
Stanje: 08.12.2025
