Data sheet
VAVE-L1-1VH3-LP (566715) Electrical sub-base
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO028743

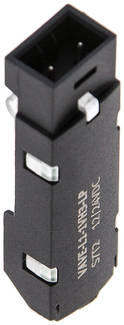

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Reverse polarity protection | Bipolar |
| Additional functions | Spark suppression |
| Signal condition display | LED |
| Nominal operating voltage DC [V] |
12 24 |
| Surge voltage strength [kV] | 0,8 |
| Degree of contamination | 3 |
| Expanded ambient temperature | -5 - 60 °C |
| Corrosion resistant class KBK | 0 - No corrosion stressing |
| LABS (PWIS) conformity | IP40 |
| ambient temperature [°C] | -5 to 50 |
| installation position | arbitrary |
| Electrical connection |
2 pin, socket / container / …. |
| Protection line connection | Not available |
| Fastening type | Clip |
| Housing colour | black |
| Material information | RoHs compliant |
| Material information | PA |
Further information:
| {{ $t('shop.all.gewicht') }} | 3,2 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568057558 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85366990 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO028743.
